iButton DS1921G-F5 — Temperature Data Logger

The DS1921G-F5 iButton is a rugged, compact temperature logger designed for reliable monitoring in harsh environments.

Specifications

• Measurement Range: –40°C to +85°C
• Accuracy: ±1°C (from –30°C to +70°C)
• Resolution: 0.5°C
• Memory Capacity: 2,048 time-stamped temperature readings
• Sampling Interval: Programmable from 1 minute to 255 minutes
• Data Retention: >10 years (non-volatile memory)
• Battery Life: ~10 years (built-in, non-replaceable battery)
• Interface: 1-Wire®

Key Features

• Durable stainless steel housing
• Suitable for long-term deployment
• Compatible with 1-Wire® communication systems
• Timestamped logging with programmable alarm thresholds

MBCL Deployment and Collection

There are several aspects of the deployment and collection of the iButtons relevant and necessary for any Citizen Scientist to interpret the raw temperature data provided here.

iButton Settings

We have set the frequency of measurement to be 255 min between measurements with no rollover once measurement capacity is reached. With a maximum capacity of 2048 measurements on each sensor, this means that each sensor can collect ~362.7 days of data continuously.

Deployment and Collection Logistics

The sensors are deployed and collected annually at the same time in partnership with the Lakeside School Outdoor Program (LSOP). Typically three adults and nine students participate in this trip, and record their actions (most of the time) in field logbooks available here.

Trip and Sensor Logistics: The sensors are initialized with minimum frequency (255 min/measurement) between 1-3 days before handoff to the student group. The sensors are placed in separate small, anti-static bags by Site number. All these small bags are placed in a larger (30 cm 30 cm) handoff package with helpful field equipment.

The handoff to the student group occurs at their bag check one day before their approach begins. The students spend three days on the mountain training and summitting. The spend two days leaving. All sensors are deployed or collected on the ascent (i.e., during the first three days of the trip).

The Route: LSOP follows the typical southern ascent of Mount Baker starting and Schriebers Meadow, up the Railroad Grade, through the Portal, to the Crater Rim, and then Summit.

Exceptions: to this timing occurred during the COVID period when there was a delay in receiving sensor orders, or the student trip was canceled. (Need dates here)

Data Munging

Data Interpretation Notes: Based on the deployment and collection logistics, there are several useful pieces of information for interpreting the data.

The sensors are annually deployed and collected at the same time (usually). As the sensors are transported to and from the mountain in the same bag, their temperatures should be very close to each other prior to deployment and after collection. If collection happens after 362.7 days, then the sensors will time out - so there would be no indication of when they were all put in the bag together.

Identification of deployment and collection dates

Below we generate a list of the deployment and collection dates. These are then cross-referenced with the dates from the field logbooks.

The following information is useful in this exercise:

1. Sensors are transported together in a bag (full of smaller bags)
2. Sensors are deployed completely by three days after arrival to Schriebers Meadow (the first deployment site)
3. Sensors have an accuracy of approximately +/- 1C.
4. Sensors tend to fill completely before collection.

Table 1 shows the ‘clean’ data start and stop dates based only on how the data appear, and not according to the logbooks. We cross-reference with the logbook to choose the most conservative time range for analysis.

Table 1. ‘Clean’ data time ranges (start and stop) for iButton data on Mount Baker. | Field Season | Start | Stop | Notes| | ———– | ———– | ———– |———– | | 2018-2019 | | | Paragraph | Text |

The following figures show all temperature sensors from the beginning and end of each field deployment, along with the standard deviation of all temperature sensors. Deployments and collection almost always occurred at the same time, and in July.

Figure 1. All temperatures during deployment of sensors during July 2018. Recorded date of sensor deployment is marked by a gray ‘o’.

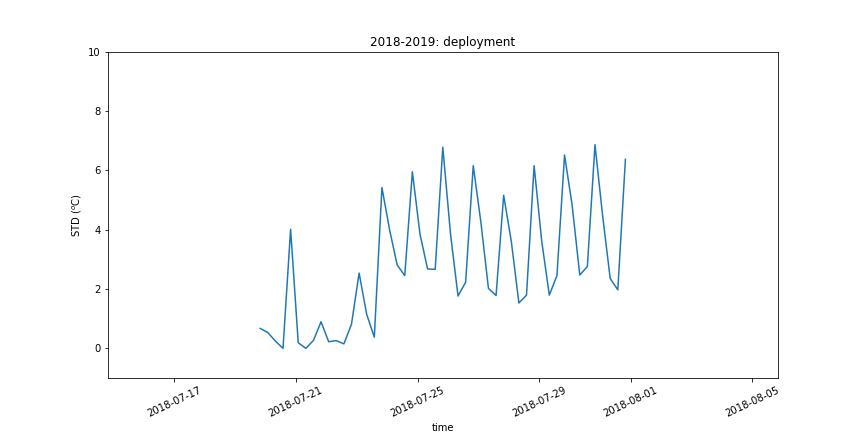

Figure 2. Standard deviation of temperatures during deployment of sensors, July 2018.

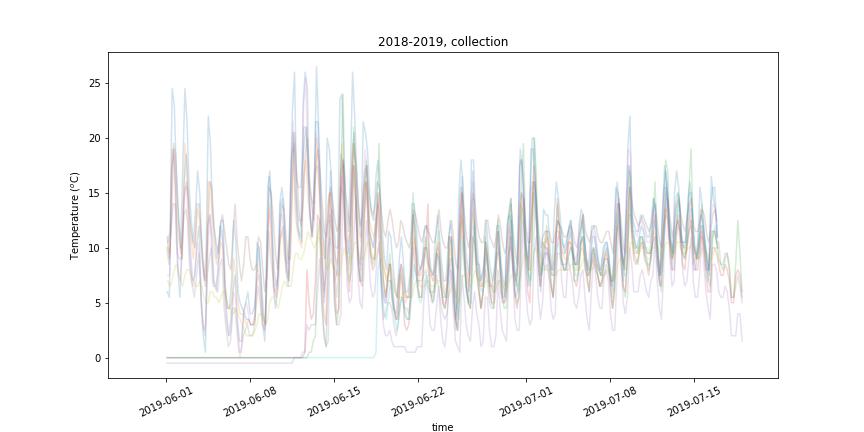

Figure 3. All temperatures during collection of sensors, July 2019. Recorded date of sensor collection is marked by a gray ‘o’.

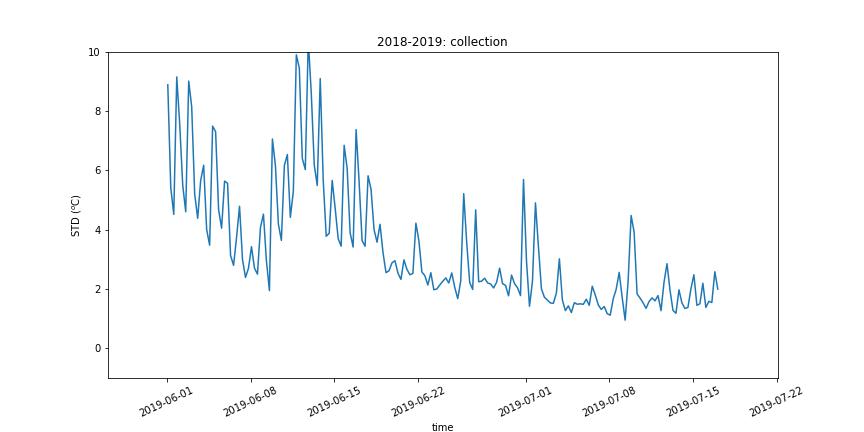

Figure 4. Standard deviation of temperatures during collection of sensors, July 2019.

Figure 5. All temperatures during deployment of sensors during July 2019. Recorded date of sensor deployment is marked by a gray ‘o’.

Figure 6. Standard deviation of temperatures during deployment of sensors, July 2019.

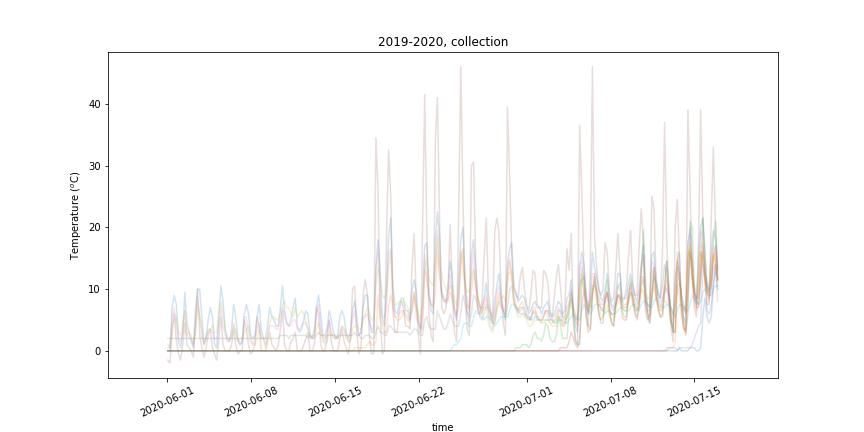

Figure 8. All temperatures during collection of sensors, July 2020. Recorded date of sensor collection is marked by a gray ‘o’.

Figure 8. Standard deviation of temperatures during collection of sensors, July 2019.

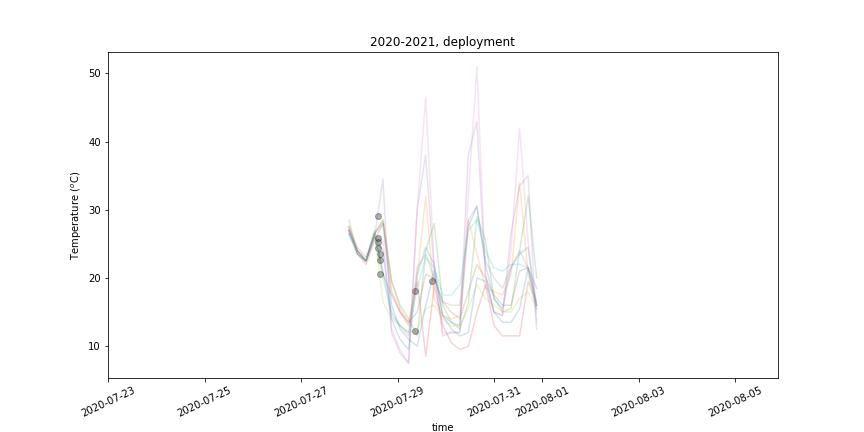

Figure 9. All temperatures during deployment of sensors during July 2020. Recorded date of sensor deployment is marked by a gray ‘o’.

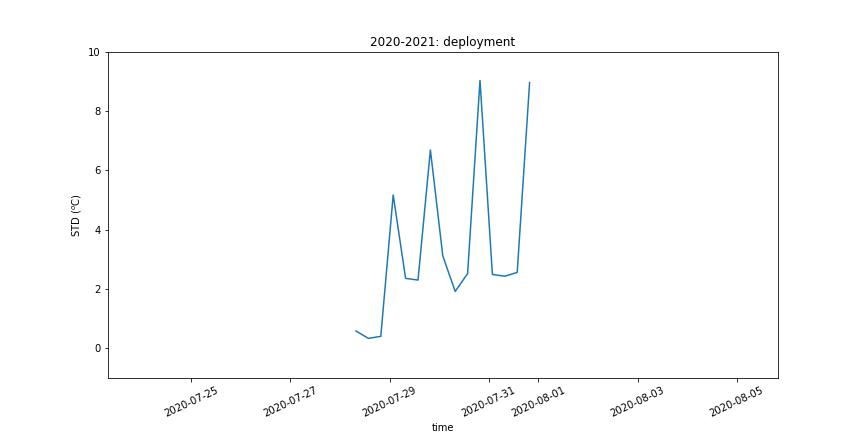

Figure 10. Standard deviation of temperatures during deployment of sensors, July 2020.

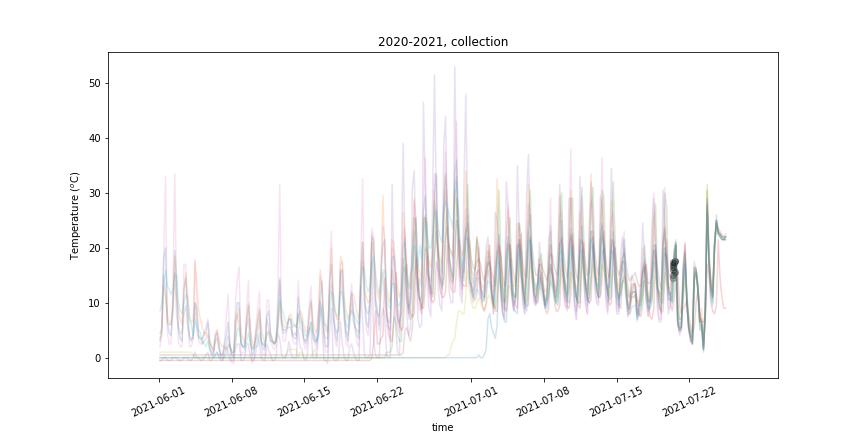

Figure 11. All temperatures during collection of sensors, July 2021. Recorded date of sensor collection is marked by a gray ‘o’.

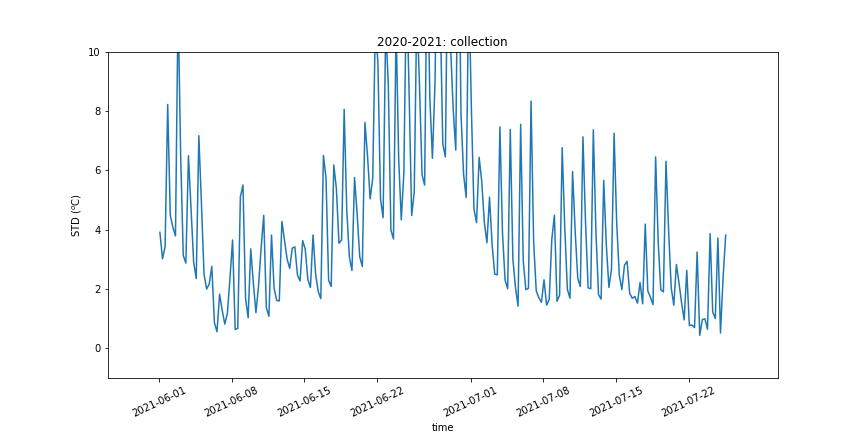

Figure 12. Standard deviation of temperatures during collection of sensors, July 2021.

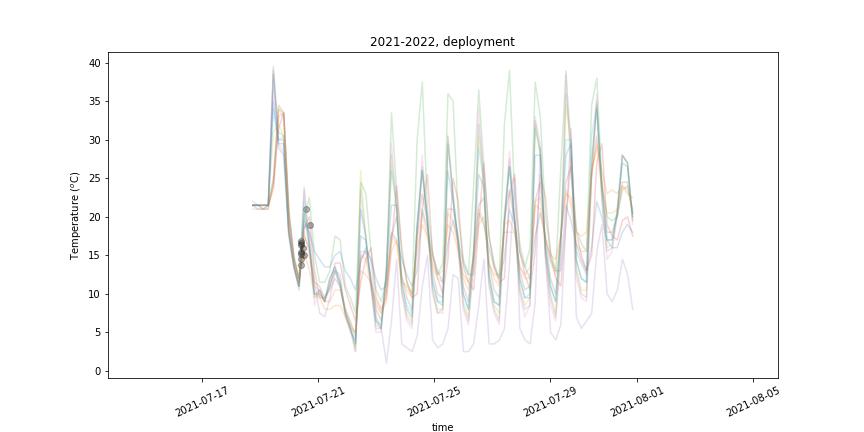

Figure 13. All temperatures during deployment of sensors during July 2021. Recorded date of sensor deployment is marked by a gray ‘o’.

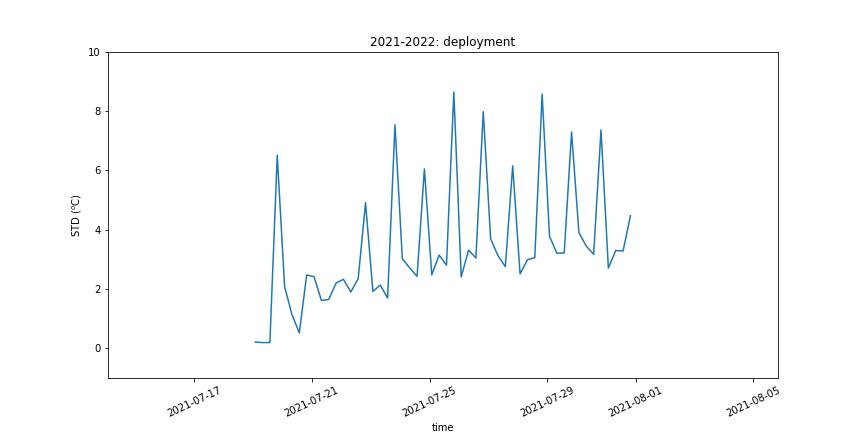

Figure 14. Standard deviation of temperatures during deployment of sensors, July 2021.

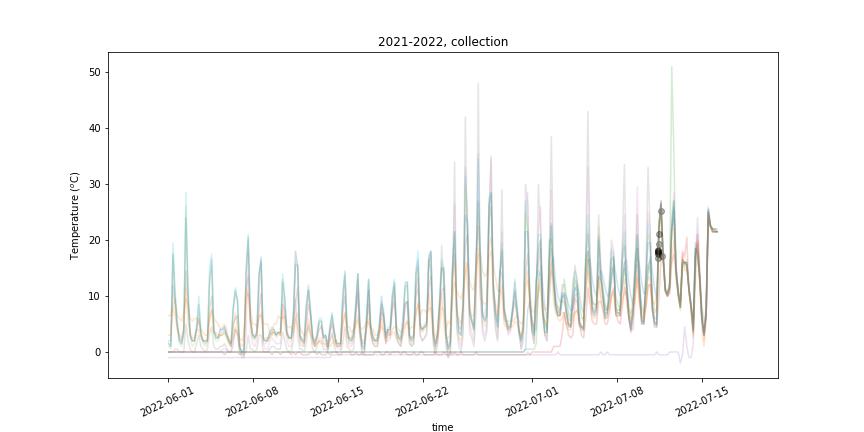

Figure 15. All temperatures during collection of sensors, July 2022. Recorded date of sensor collection is marked by a gray ‘o’.

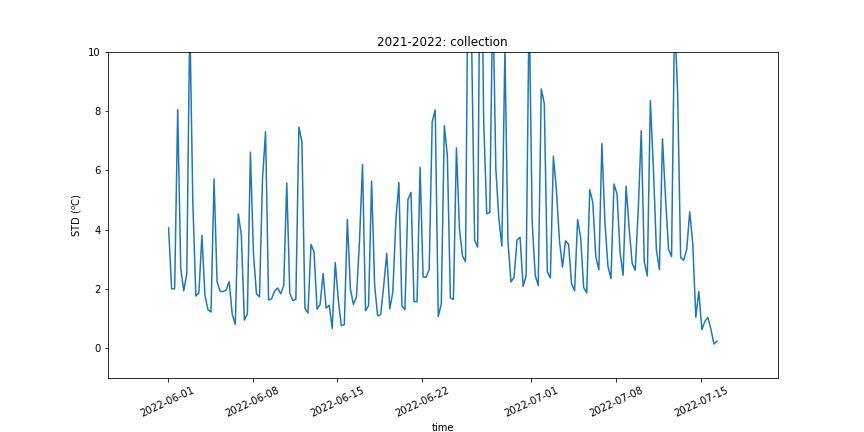

Figure 16. Standard deviation of temperatures during collection of sensors, July 2022.

Figure 17. All temperatures during deployment of sensors during July 2022. Recorded date of sensor deployment is marked by a gray ‘o’.

Figure 18. Standard deviation of temperatures during deployment of sensors, July 2022.

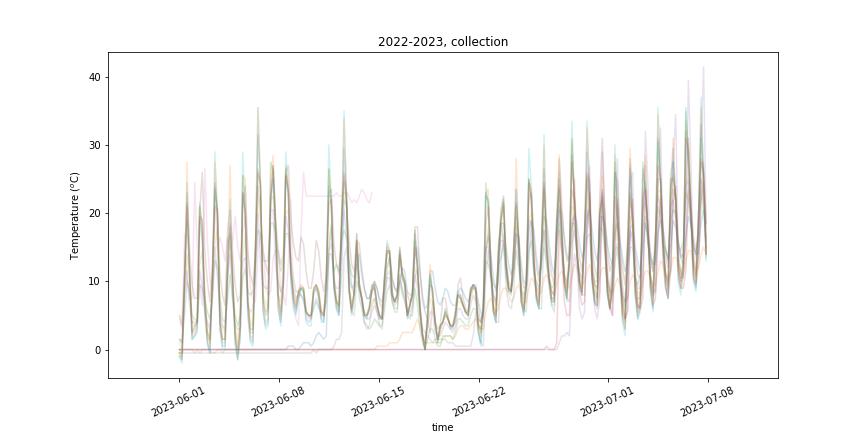

Figure 19. All temperatures during collection of sensors, July 2023. Recorded date of sensor collection is marked by a gray ‘o’.

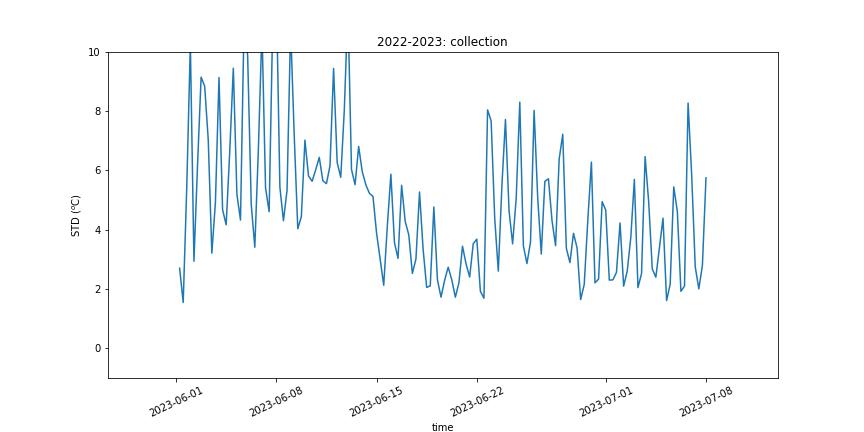

Figure 20. Standard deviation of temperatures during collection of sensors, July 2023.

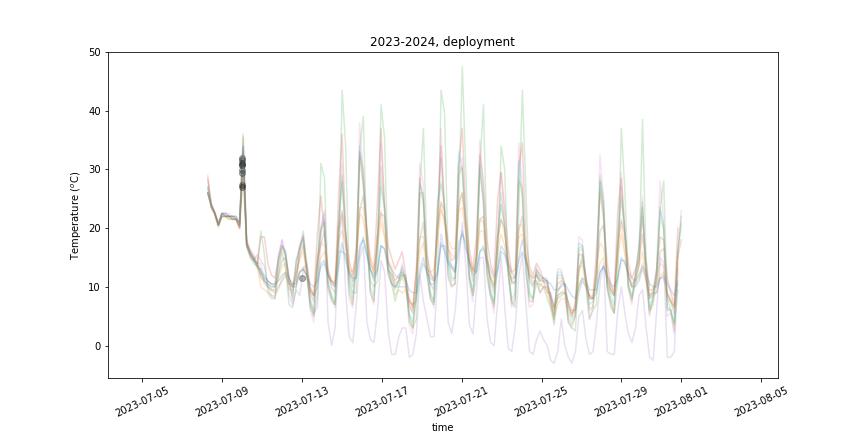

Figure 21. All temperatures during deployment of sensors during July 2023. Recorded date of sensor deployment is marked by a gray ‘o’.

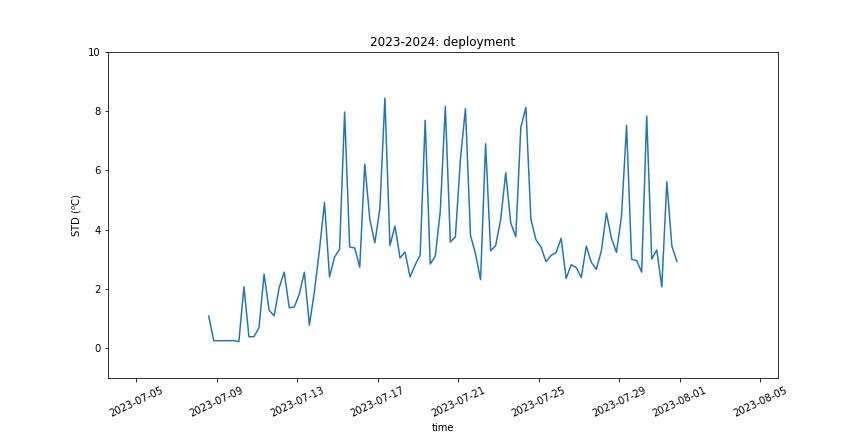

Figure 22. Standard deviation of temperatures during deployment of sensors, July 2023.

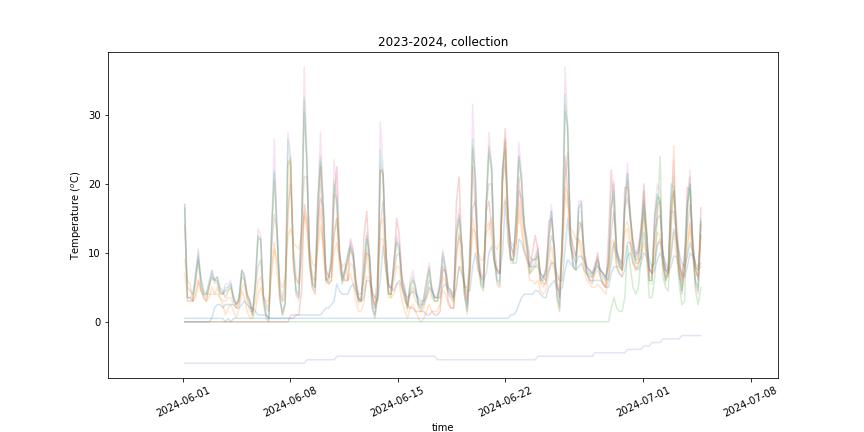

Figure 23. All temperatures during collection of sensors, July 2024. Recorded date of sensor collection is marked by a gray ‘o’.

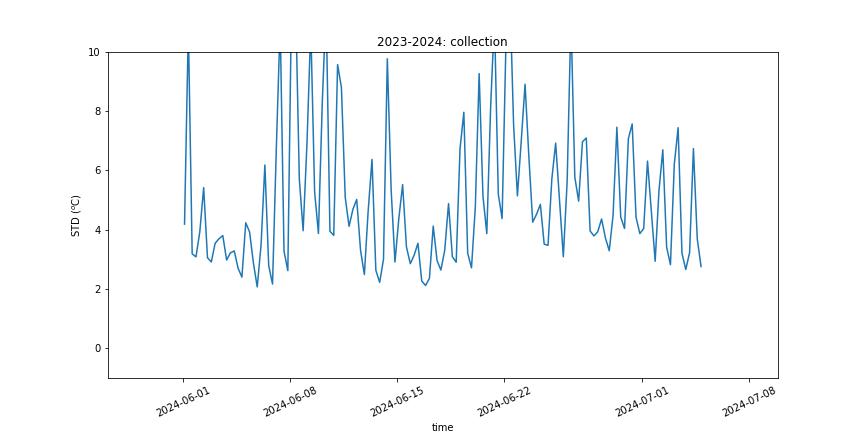

Figure 24. Standard deviation of temperatures during collection of sensors, July 2024.
